Cable construction is where RF performance becomes real-world performance. Two cables can share the same impedance and look similar on paper, yet behave very differently once you route them through a chassis, cycle temperature, or flex them through repeated test and integration work. The way a cable is built—its conductor style, dielectric material, shielding approach, and protective jacket—directly influences attenuation, phase stability, shielding effectiveness, power handling, durability, and how predictable the assembly remains over time.
Teledyne Storm Microwave supports cable construction choices that let teams dial in the right balance of low loss, stability, flexibility, and ruggedness. Understanding construction fundamentals makes it easier to select the best-fit cable family early, avoid overbuilding, and reduce the “mystery” problems that show up later as intermittent faults, calibration drift, or performance shifts caused by handling and environmental exposure.
What cable construction controls
Cable construction determines how the electromagnetic field is guided, how well the structure holds its geometry, and how well the cable resists outside interference and mechanical stress. At microwave frequencies, small construction differences can affect reflections, attenuation slope, and stability under temperature or motion. The right build approach helps maintain consistent impedance and predictable RF behavior across installation and lifecycle use.
Beyond electrical performance, construction also drives integration practicality: minimum bend radius, crush and abrasion resistance, connector strain tolerance, and how well the cable survives repeated mating cycles and maintenance access. This is why “best fit” selection is typically a balance of RF metrics and mechanical realities.
Key elements of cable construction

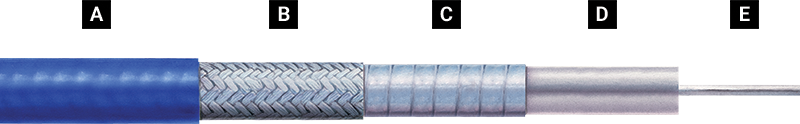

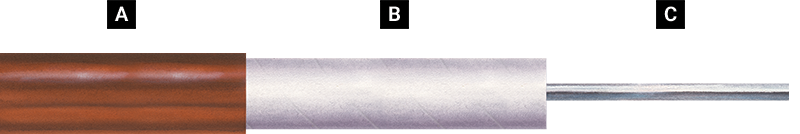

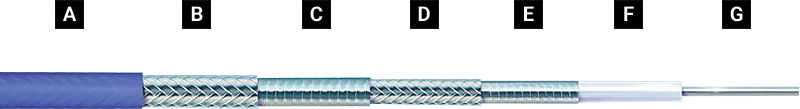

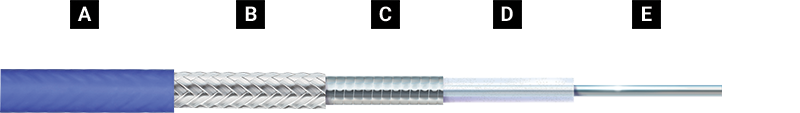

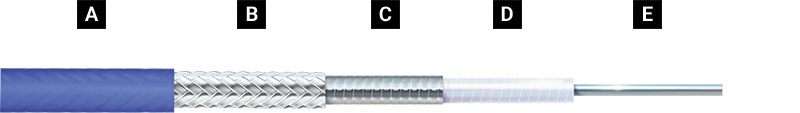

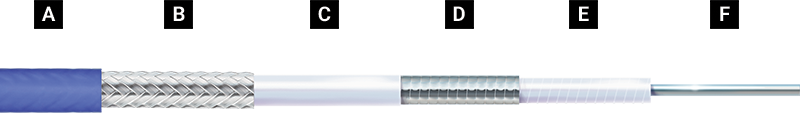

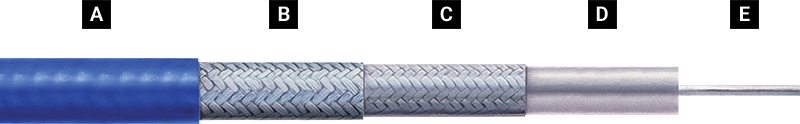

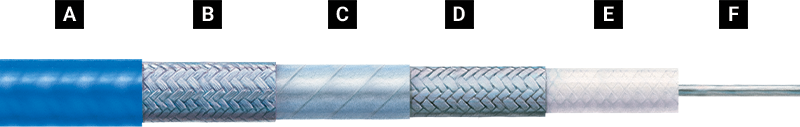

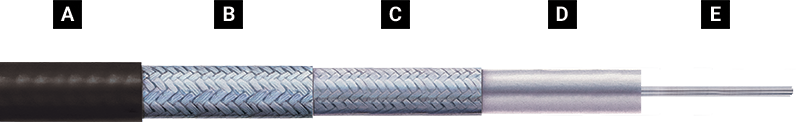

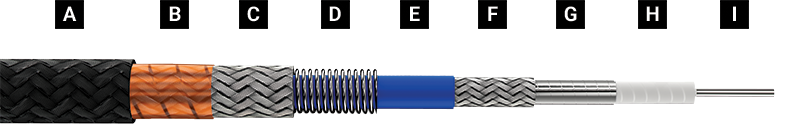

Most RF/microwave coaxial cables share common building blocks, but the choices inside each block matter. Center conductors can be solid or stranded depending on flexibility and stability needs. Dielectrics (often PTFE variants) affect loss, velocity of propagation, and temperature behavior. Outer conductors and shields (foil, braid, or combinations) influence shielding effectiveness, leakage, and durability. Jackets protect against abrasion, moisture, chemicals, and handling damage, and can be selected to match environmental exposure and routing conditions.
These elements work together. For example, ultra-low-loss designs may trade flexibility for lower attenuation, while highly flexible designs may prioritize bend performance and repeated motion stability. The most successful selections start by identifying the dominant constraint—lowest loss, tight routing, maximum ruggedness, or best stability—then choosing the construction that supports it without creating new integration problems.
Designing for stability over temperature and handling
In many systems, the biggest interconnect issues aren’t catastrophic failures—they’re small shifts that add up: phase drift with temperature, increased loss after repeated flex, or shielding degradation that raises noise and coupling. Construction choices that maintain geometry and resist mechanical fatigue help keep performance consistent from lab validation through deployment. If your system is sensitive to phase or amplitude variation, a construction optimized for stability can be more valuable than a small reduction in nominal loss.
Frequently Asked Questions
-
What is cable construction in the context of RF and microwave coax?
Cable construction refers to the materials and physical layers that make up the cable—center conductor, dielectric, outer conductor/shield, and jacket. Those choices determine both RF behavior and how the cable survives handling and environment.
-
Why can two “50 ohm” cables perform differently?
Impedance is only one part of performance. Differences in dielectric loss, conductor style, shielding, and geometry control can change attenuation, phase stability, shielding effectiveness, and how performance shifts over temperature and flexure.
-
How does the center conductor affect performance?
Conductor style influences loss, flexibility, and stability under motion. Solid conductors can support consistent geometry, while stranded designs can improve flexibility and flex-life depending on the construction and application.
-
What role does the dielectric play?
The dielectric affects attenuation, velocity of propagation, and temperature behavior. Material selection and how the dielectric is formed can influence phase stability and long-term performance consistency.
-
How do shields and outer conductors impact a cable’s behavior?
Shielding affects leakage, susceptibility, and coupling in dense RF environments. It also contributes to mechanical durability, especially where abrasion, vibration, and repeated handling can compromise shielding over time.
-
What does the cable jacket do beyond “protection”?
Jackets influence abrasion resistance, chemical resistance, temperature survivability, and how the cable behaves during installation. The wrong jacket can wear through, stiffen unexpectedly, or fail in harsh environments even if the RF core is solid.
-
How does construction affect minimum bend radius?
Stiffer, lower-loss constructions often have larger minimum bend radii, while flexible constructions can route more tightly. Exceeding bend limits can permanently change electrical behavior or damage the structure.
-
Is ultra-low loss always the best construction choice?
Not always. Ultra-low-loss designs can be larger or less flexible, increasing routing difficulty and mechanical stress. The best choice balances attenuation with flexibility, durability, and stability requirements.
-
Which construction factors matter most for phase stability?
Geometry control and dielectric behavior with temperature are major drivers. Constructions that resist deformation under stress and maintain consistent electrical length help reduce phase drift over temperature and handling.
-
How do I choose construction for high-vibration or harsh environments?
Prioritize mechanical robustness, abrasion resistance, shielding durability, and good strain relief compatibility. Provide your vibration, temperature, and handling expectations so construction choices align with real exposure.
-
What should I provide to get a best-fit construction recommendation?
Share frequency range, length, routing constraints, environment, handling profile, and what matters most (loss, stability, flexibility, ruggedness). If your system is phase-sensitive or margin-limited, call that out explicitly.
-
Can Teledyne Storm help translate construction tradeoffs into a specific cable choice?
Yes. With your requirements and constraints, Storm can recommend a cable family and construction approach that balances RF performance with the realities of routing, assembly, and lifecycle durability.
-
How does cable construction influence troubleshooting and reliability?
Construction drives whether problems appear as slow drift (phase/loss changes) or as intermittent faults (shield breaks, stressed terminations). Choosing the right construction up front reduces both failure risk and debug time later.
